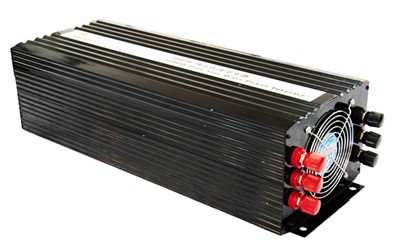

5000 Watts Power Inverter(PI-5000)

Features

  • 5000 watts continuous power
  • 10000 watts peak power
  • Anodized aluminum case provides durability
  • Built-in cooling fan
  • Power ON/OFF switch
  • 1 m battery cables include

Specifications

Model
PI-5000-12
PI-53000-24
PI-5000-48
PI-5000-96
Output power
5KW continuous power/10KW peak power
Output voltage
100/110/120/220/230/240VAC
Optimum efficiency
up to 95%
No-load draw
＜1.2 A
Output wave form
Pure Sine Wave
Input voltage range
10~15VDC
21~30VDC
42~60VDC
85~120VDC
Over voltage shutdown
15.5V
30.5V
61.2V
122V
Under voltage shutdown
9.5V
19.5V
42V
85V
Over load shutdown
7500W
Low voltage alarm
Audible
Protection
Over voltage shutdown, Under voltage shutdown, Low voltage alarm, Over load shutdown, Thermal shutdown, Short circuit shutdown
AC receptacle
3 x 3 prong receptacles
Warranty
1 year
Weight
12 kg
Dimension(W x H x D)
550 x 250 x 140 mm

Applications

  • The inverter attaches directly to a 24V/48V/96V/120V battery supply. It has the ability to power on small load devices. It has durable reinforced panels on the interior which allows for the unit to be used in vehicles.Designed with the best quality components inside, all high grade resistor/transistors.
  • Some applications that it can be used for are: Home electronics, office equipment, small tools and appliances. Smaller power tools(drills etc….).
  • Ideal for camping, boating, caravans, mobile office, field work, emergency power and many other uses

1 m free cables provided
